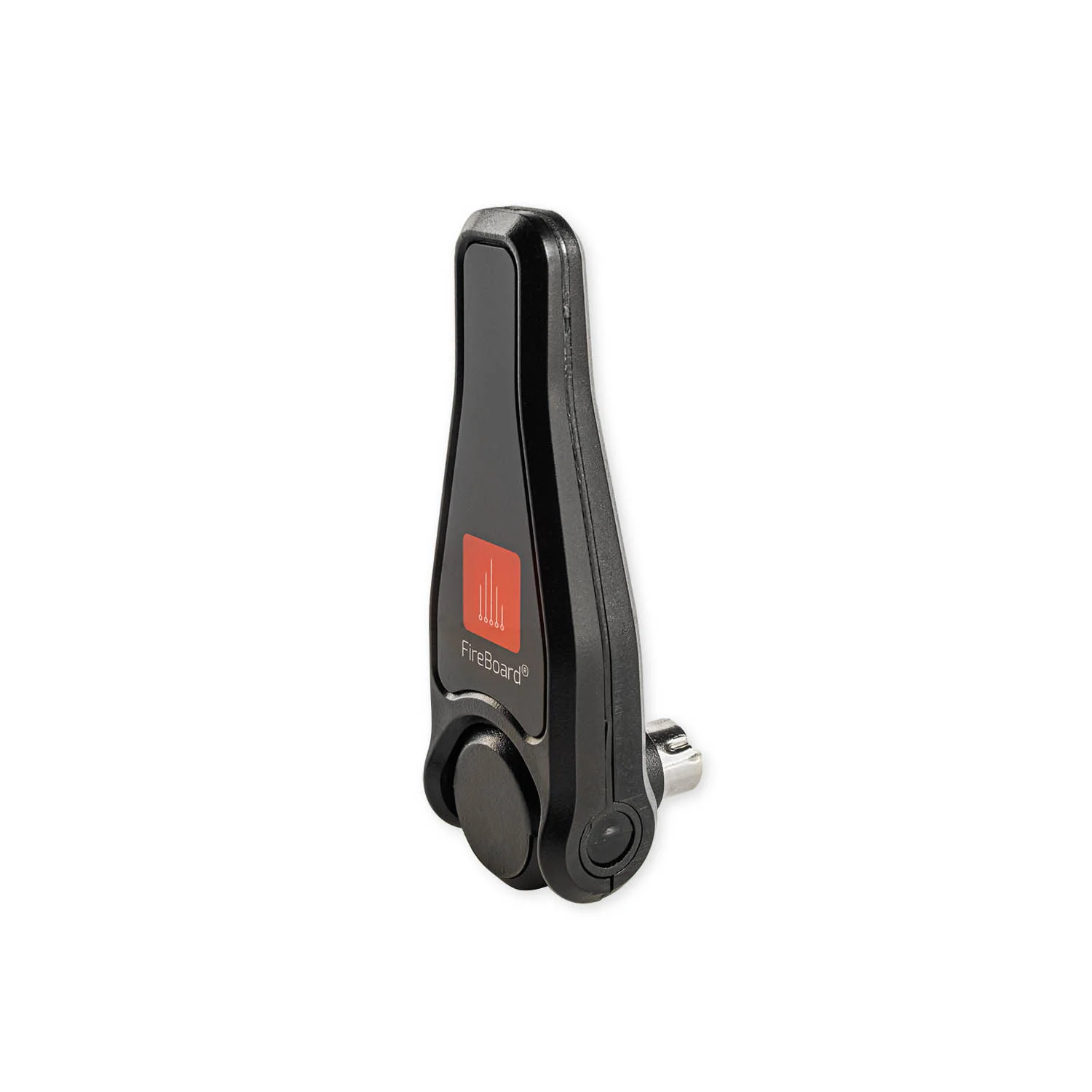

S1G Antenna

The FireBoard Antenna will enable a FireBoard 2, Drive, or Pro to receive data from S1G devices, like the Beacon.

Included in box: One FireBoard Antenna, and Quick Start Guide.

The FireBoard Antenna attaches to the auxiliary port of FireBoard to enable FireBoard S1G technology. When a S1G device transmits data to the Antenna, the data will be viewable from the FireBoard screen and via the FireBoard Mobile App.

Specifications
Outer Dimensions
2.9” L x 1” W x 1.1” H (74mm x 25mm x 28mm)
Frequency Range
902 – 928 Mhz
Connector
8 pin Mini-DIN
Compatibility
FireBoard 2 Series
Power Source
Powered from FireBoard via aux port
